Gateron Jade Air Magnetic Switch Set (10 pieces)
Gateron Jade Air Magnetic Switches 10pcs
Product description

Gateron Jade Air Magnetic Switches are the latest linear switches that use a magnetic hall sensor.
With a light initial force of just 36gf and a smooth stroke that feels like it's sticking to your fingers, it delivers high precision even in gaming situations that require quick reactions.
The highly durable neodymium magnet and dual rail structure reduce wobble from bottoming out to returning to the original position, ensuring stable input.
The fully transparent housing works beautifully with the RGB, creating a clear, three-dimensional light.
Designed to withstand temperatures up to 150°C, it maintains stable performance even during long, intense sessions.
This next-generation magnetic switch is ideal for gamers who want a light typing feel and high response performance.
- Non-contact actuation using magnetic hall sensors (no metal leaf)
- Flagship-class zero drift accuracy that keeps the operating point stable even after extended use
- High-quality neodymium magnets for ultra-high precision input control
- Dual-rail stem support reduces wobbling and provides a stable feel when pressing.
- Fully transparent housing for maximum RGB and light diffusion
- Pre-lubricated at the factory for a smooth typing experience right from the start
- The closed-bottom housing ensures stable sound and feel.

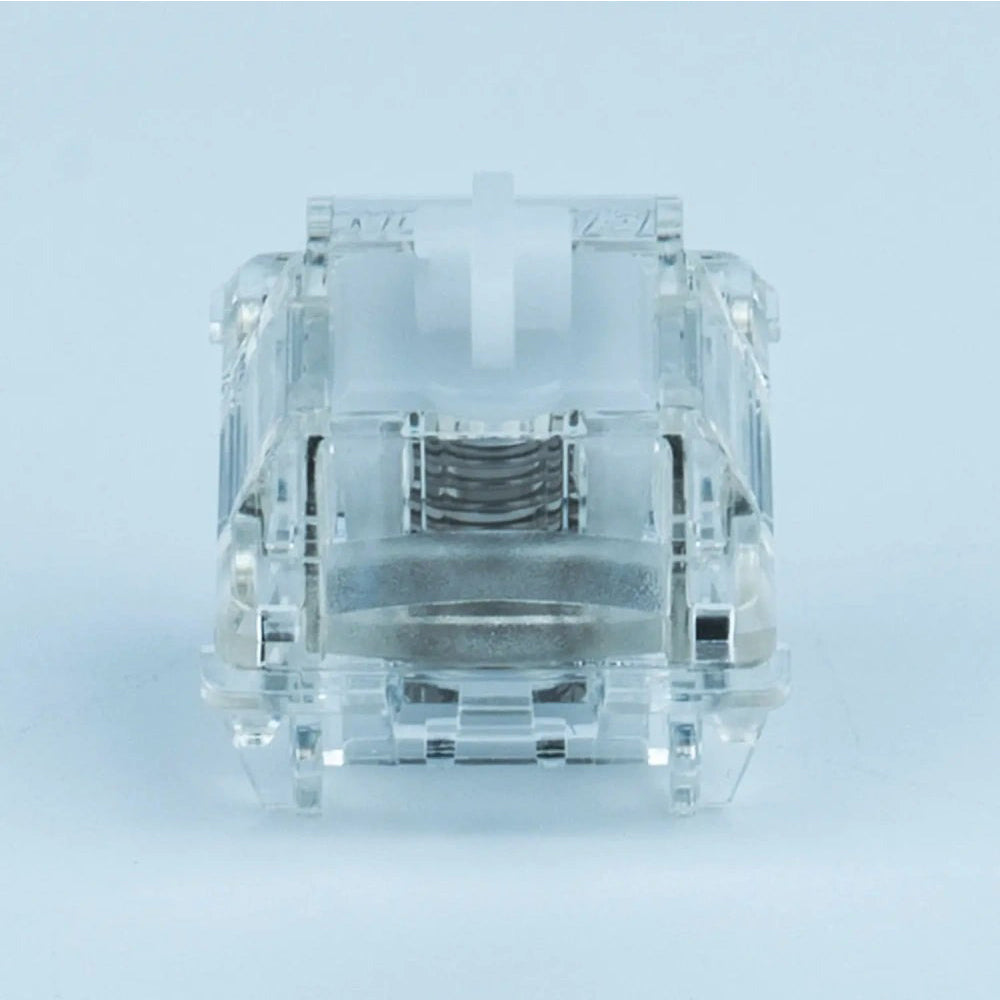

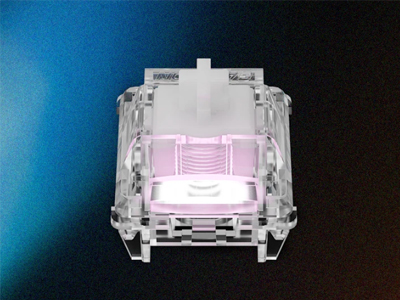

The completely transparent housing and white stem provide a crystal clear feel.
It also works perfectly with RGB lighting, allowing you to enjoy immersive, flowing light effects.

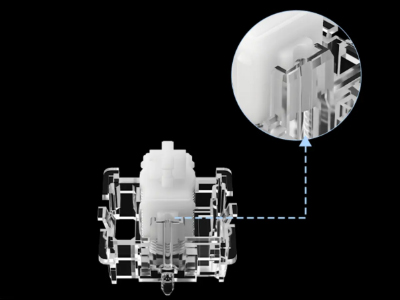

The dual rail design precisely guides stem movement.
It eliminates all wobbling from bottoming out to rebounding, achieving both linear smoothness and solid stability.
It gives you the control you need with your fingertips.

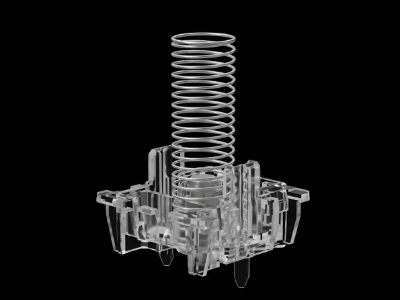

Optimized spring tension and weight balance provide a feather-light feel and instant response.
It's easy to play or work for long periods of time without getting tired, and you can easily switch from gaming to typing.

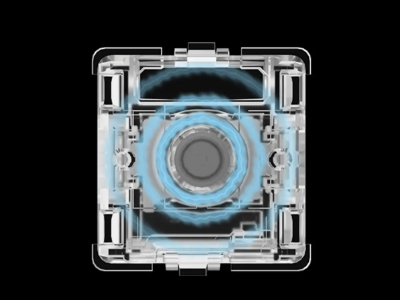

The internal structure has been thoroughly redesigned to achieve a crisp bottoming sound and a reset sound free of unnecessary resonance.
You can immerse yourself in the clear and pleasant sound of keystrokes.

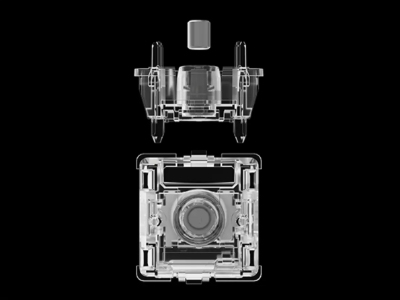

The stem uses a high-temperature resistant neodymium magnet, maintaining stable performance even in harsh environments of 150°C.
Even in situations where heat dissipation is required, the heat resistance ensures the switch's original performance.
SWTYPELINEAR
Product features
COMPATIBILITY・ARC 60
・ARC 65
・POLAR 65+
・POLAR 75+
・Wooting 60HE+
・Wooting 80HE
・Venom 60HE
And many more...
Magnetic keyboard compatibility:
This magnetic switch is designed with the north pole facing downwards towards the PCB board.
This switch is compatible with any keyboard model that uses a magnetic switch with the N pole facing downwards. Please be sure to check the specifications of your keyboard before purchasing.
*Not compatible with POLAR 65/65 Pro/75 Pro keyboard models.
• Initial pressing force: 36±5gf
• Activation pressure: 50±10gf
• Total stroke: 3.5±0.1mm
• Pre-lubrication: Yes
• Spring: 20mm
• Keystroke feel: Linear
• Durability: More than 150 million times
Product information
| Item number | as-mgs-gr-jadeair-10 |
|---|---|
| situation | New |
| Product sales/exporting countries | China |
| Packing weight (g) | 100 |
